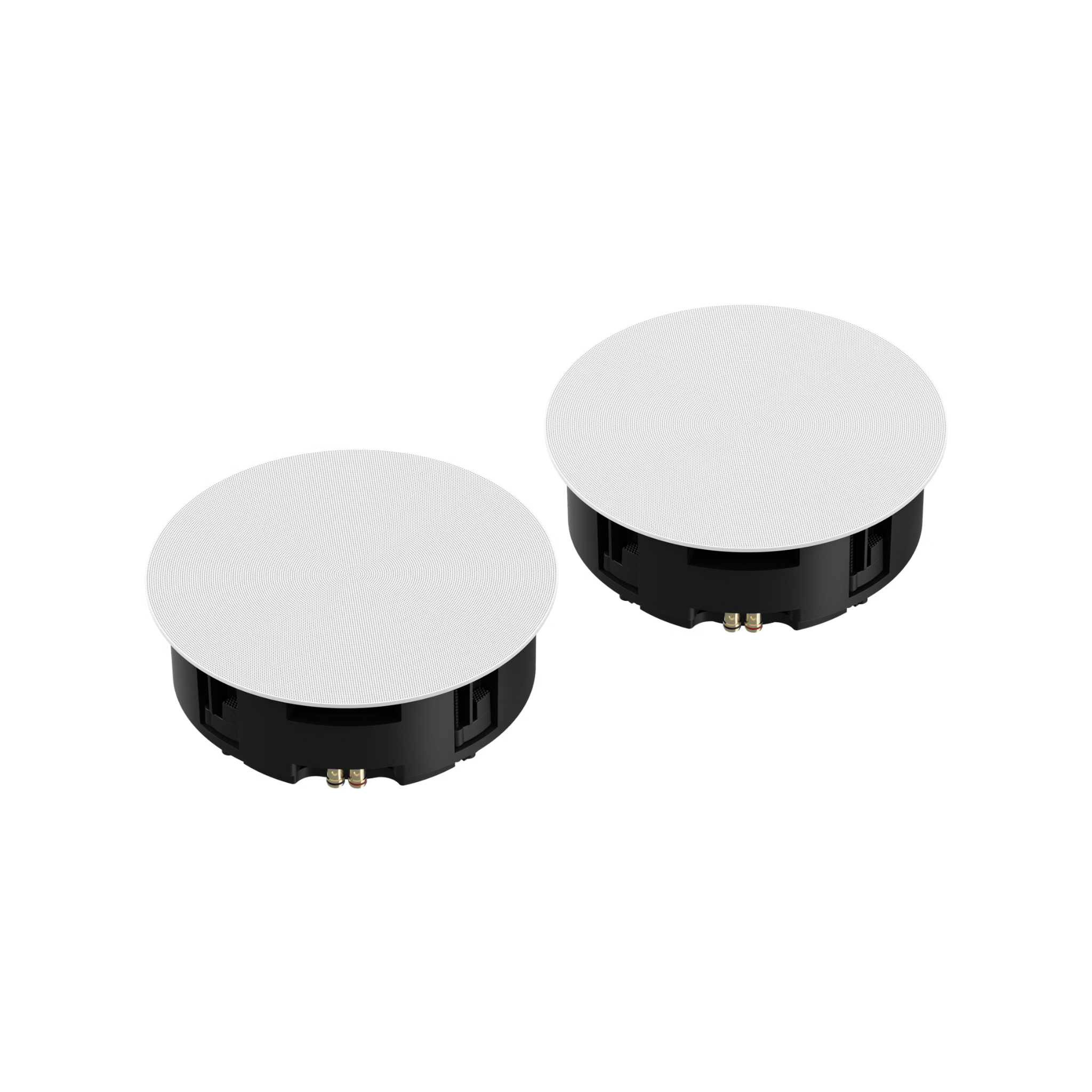

Sonos In-Ceiling Speaker from Sonos and Sonance Pair
Sonos In-Ceiling Speaker from Sonos and Sonance Pair
Couldn't load pickup availability





Collapsible content
Beschreibung
Optimized for the Sonos Amp
When paired with Sonos Architectural Speakers, the Amp optimizes tuning for an even more robust and consistent frequency response.
Perfectly tuned to your room
Connecting to the Amp unlocks Trueplay™ tuning in the Sonos app. This technology measures how sound bounces off walls, furniture and other surfaces and then perfectly tunes your speakers for a great sound experience.
Amplify more speakers with a single amp
Wired in parallel, the Amp reliably amplifies up to three pairs of Sonos Architectural speakers (six in total), optimizing their performance and filling an even larger room with high-quality sound.
The best sound performance
When you optimize Sonos speakers in the Sonos app, the custom DSP adjusts the equalizer perfectly, while the limiter enables smooth and consistent volume dynamics across the entire frequency range.

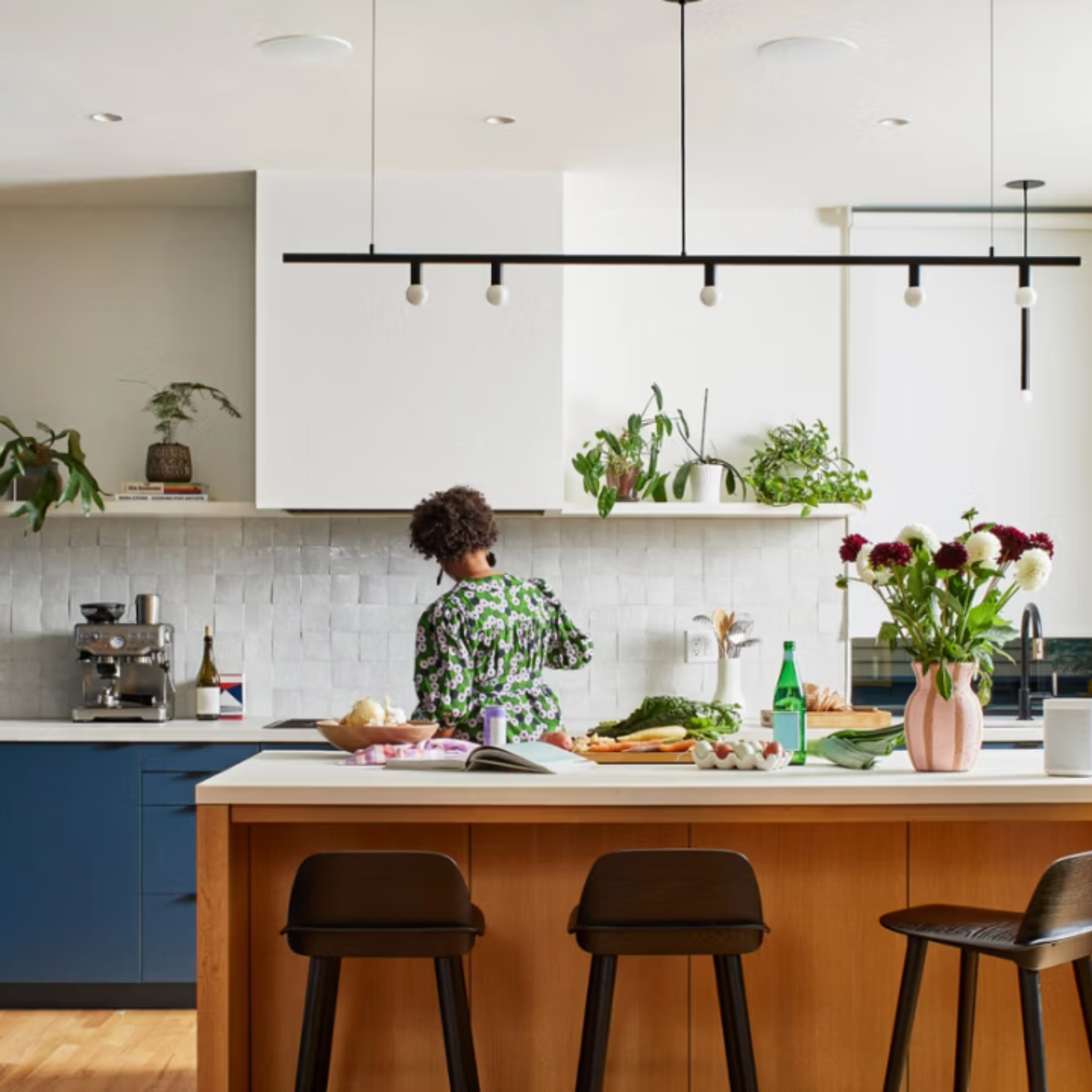

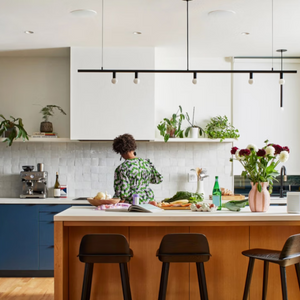

Perfectly integrated into your home

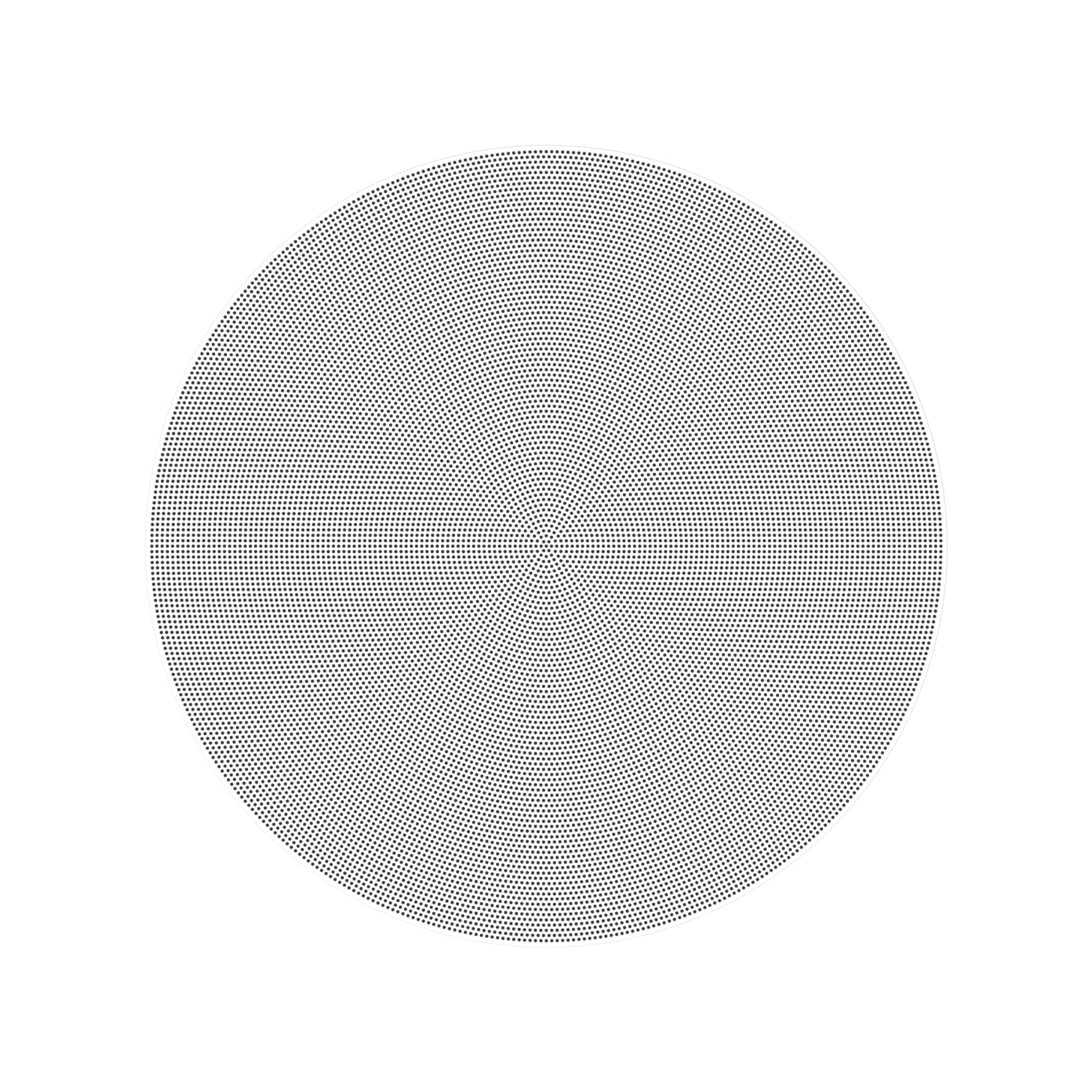

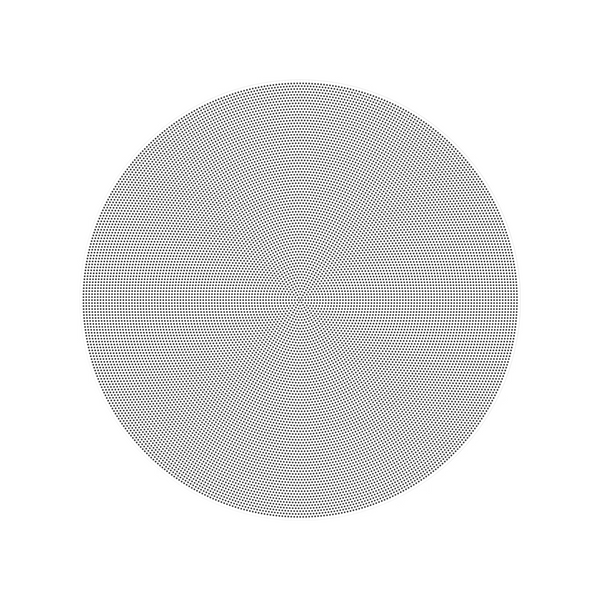

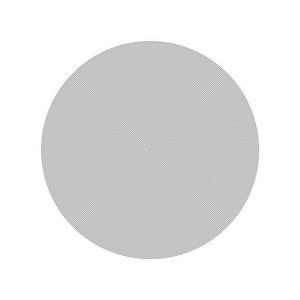

The carefully designed, flush front can be painted in a color to match the ceiling.
Developed in partnership with Sonance, the perfectly matched speakers offer natural, room-filling sound and easy installation.
Available in 152 mm and 203 mm sizes. Sold as a pair. Passive speakers require an amplifier (sold separately).
Technische Spezifikationen
Audio

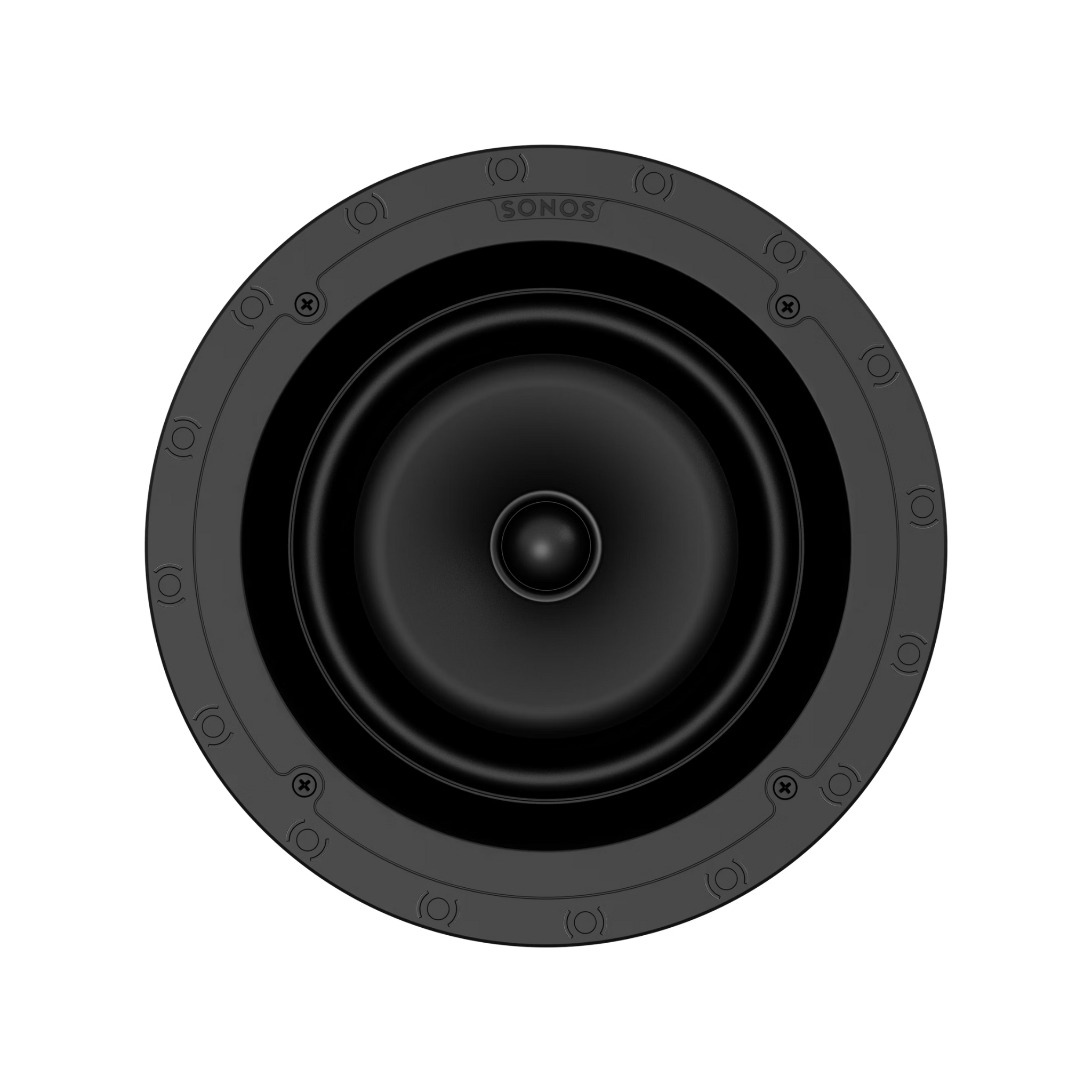

Polypropylene low-frequency driver
152 mm – a 165 mm polypropylene
203 mm – a 203 mm
High-frequency driver
152 mm – a 25 mm
203 mm – a 30 mm
Frequency range
152 mm – 36 Hz to 20 kHz ±3 dB (with DSP)
203 mm – 29 Hz to 20 kHz ±3 dB (with DSP)
Nominal impedance
8 ohms
Sensitivity (2.83 V/1 m)
152 mm – 85 dB SPL
203 mm – 86 dB SPL
Max SPL
152 mm – 110 dB at 1 m
203 mm – 113 dB at 1 m
Nominal detection angle
152 mm – 90° axially symmetric
203 mm – 100° axially symmetric
Optimize speakers
If “Optimize Sonos Speaker” is selected in the Sonos app
The Amp Sonos Architectural Speaker recognizes and ensures
effective tuning and DSP for even more powerful sound and a
more even frequency response. It also optimizes system performance and
ensures reliable operation.
Trueplay
This software determines the acoustics of the room and adjusts
The speaker is perfectly suited to this. It is a Sonos Amp and a compatible
iOS device required.
Details and dimensions
Dimensions
152 mm – Diameter: 235.5 mm
152 mm – Depth: 120.3 mm
203 mm – Diameter: 283.5 mm
203 mm – Depth: 135 mm
opening
152 mm – Diameter: 209.6 mm
203 mm – Diameter: 257 mm
Weight
152 mm – 2.27 kg each
203 mm – 4.1 kg each
Colors
White
surface
Frosted
Power supply and connectivity
Performance (optimized for the Sonos Amp)
152 mm – max. 130 watts
203 mm – max. 225 watts
Scope of delivery
In-Ceiling Speaker from Sonos and Sonance (pair)
Speaker fronts (pair)
Opening template
documentation
Installation instructions, legal information and
guarantee
