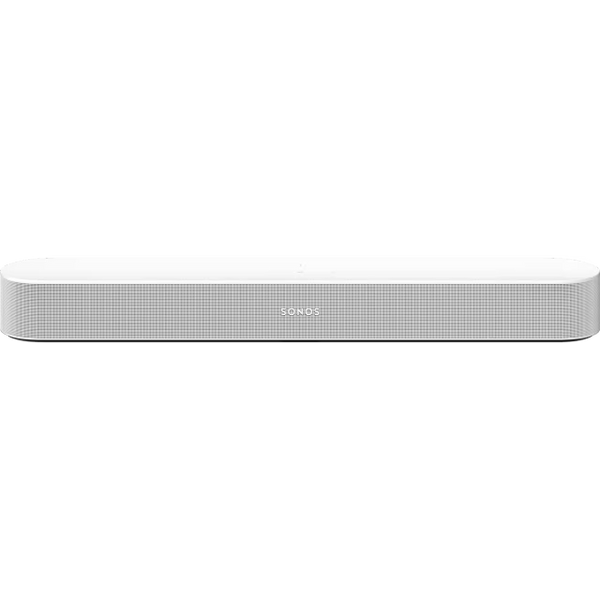

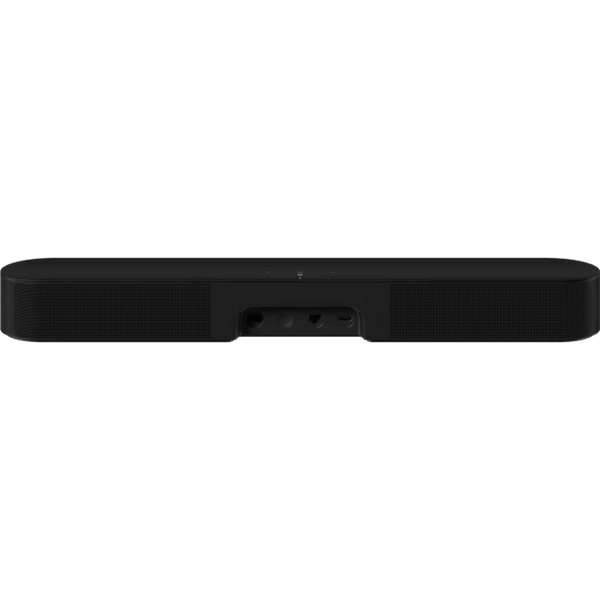

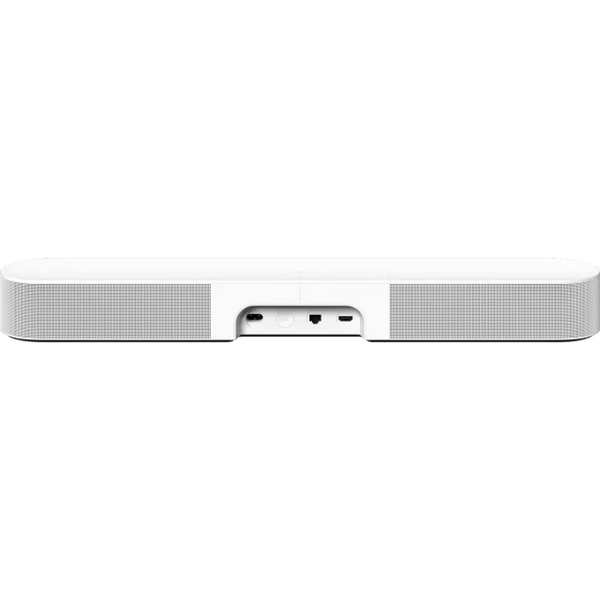

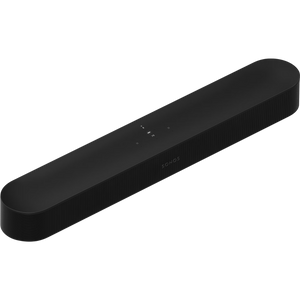

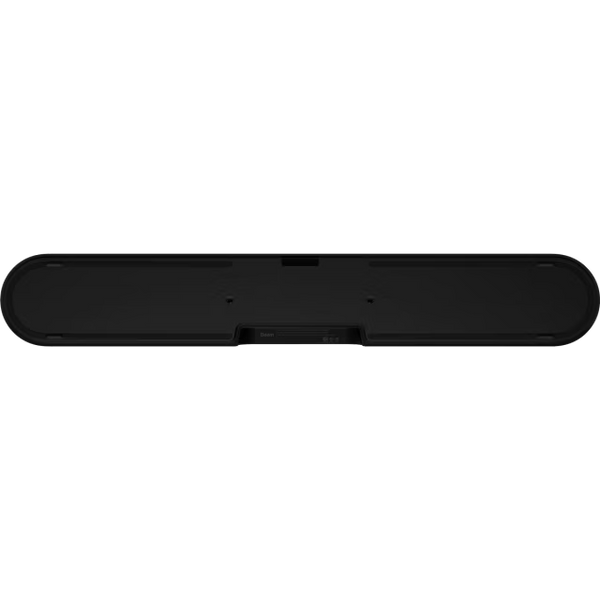

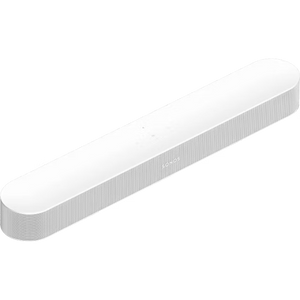

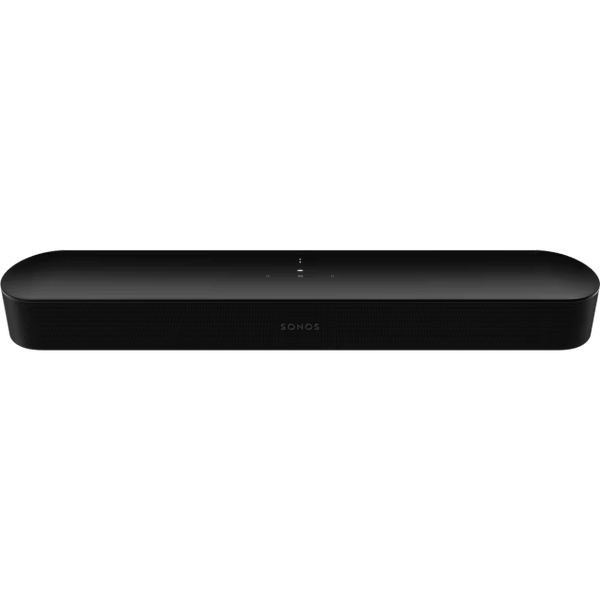

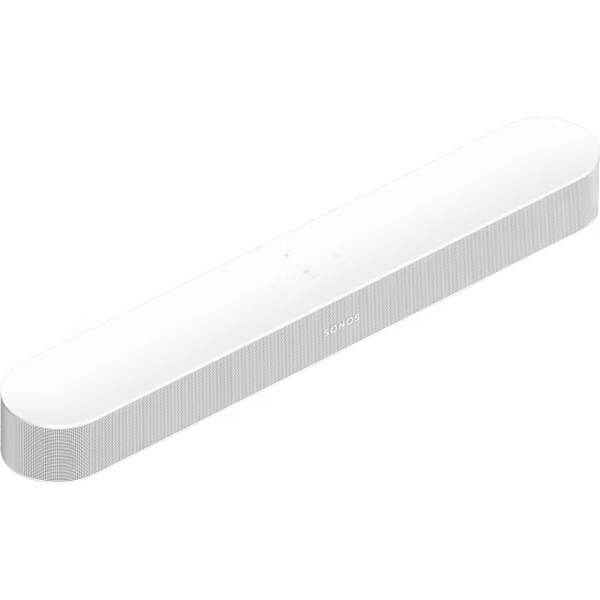

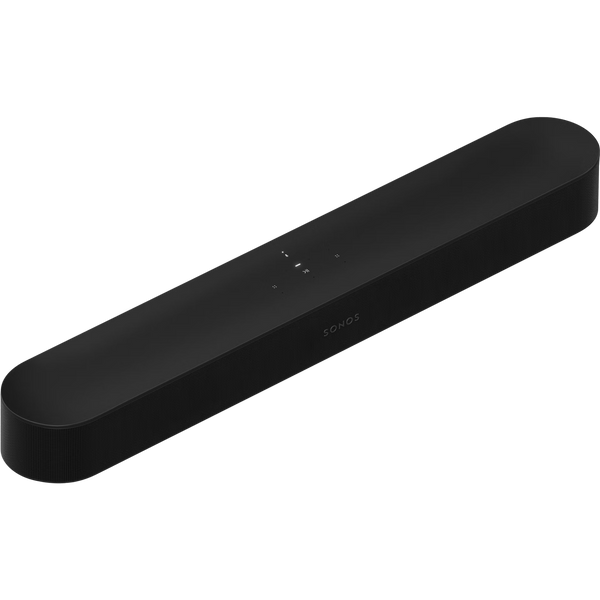

Sonos Arc Ultra Soundbar
Sonos Arc Ultra Soundbar
Couldn't load pickup availability
Collapsible content
Beschreibung
Sound Motion™
The key to captivating sound
Sound Motion™ technology sets new standards in audio performance. The integration of Sound Motion™ into the Arc Ultra enables deeper, more powerful bass response in a more compact design. This innovation creates space for additional tweeters and midrange drivers for a wider and more balanced soundstage than the previous generation Arc.
Dolby Atmos
Sound on a whole new level
The Arc Ultra provides incredibly detailed sound thanks to Dolby Atmos and enables breathtaking 9.1.4 3D audio. (Dolby Atmos content and compatible TV required. Stream Dolby Atmos music from a supported service).
Speech enhancement
Crystal clear dialog for everyone
The Arc Ultra's voice enhancement uses AI to recognize the human voice for crystal-clear dialogue. Thanks to the four customizable levels, you can hear every word with incredible precision.
A design to be proud of
Uniquely rounded shape. Timeless design. Matte finish. The Arc Ultra is designed to fit elegantly into your home, with the focus entirely on your entertainment.
Quick and easy setup
High quality cinema sound in minutes. Plug in the power cable, connect your TV with the included HDMI cable and open the Sonos app to complete the setup.
Perfectly tuned to the room
With Trueplay™ you can adjust the sound to the individual acoustics of the room and the placement of the soundbar in the Sonos app. Available for iOS and Android.
Fill your home with music
The Arc Ultra is much more than just a soundbar. It's also our most powerful 3D audio speaker. Stream music and more via Wi-Fi and Bluetooth when the TV is off. Set up Sonos speakers in other rooms to experience sound anywhere in your home.
Eco-friendly sound design
From increasing the energy efficiency of our products to eliminating plastic from our packaging: We're always finding new and innovative ways to reduce our environmental impact.
Featuring breakthrough Sound Motion™ technology for a wider soundstage, the Arc Ultra brings your entertainment to life like no other soundbar.
Enjoy clearer dialog, deeper bass and more detailed, ultra-accurate sound that surrounds you from every direction - all in an incredibly elegant design. Dolby Atmos takes immersive 9.1.4 3D audio to a new level (Dolby Atmos content and compatible TV required. Stream Dolby Atmos Music from a supported service). An advanced version of speech enhancement ensures even clearer dialog so you never miss a word. Use the included HDMI cable, set everything up in minutes and enjoy perfect control with your TV remote. You can also use the Sonos app, the touch control on the top of the Arc Ultra, Sonos Voice Control and Amazon Alexa (voice assistant availability varies by country and language). Stream music and more from all your favorite services via Wi-Fi and Bluetooth when your TV is off. Add a Sonos Sub and Era 300 as surround speakers and experience the ultimate surround sound experience with Dolby Atmos. Add Sonos speakers to other rooms and enjoy great sound anywhere in your home.
Technische Spezifikationen
Audio
amplifier
15 digital Class D amplifiers are perfectly matched to the
unique acoustic architecture.
tweeter
Seven precisely angled dome tweeters ensure
crystal-clear treble frequencies and dialogues. Two of these tweeters are facing upwards
and create dedicated height channels for 3D audio.
Midrange
Six midrange drivers guarantee optimal reproduction of the
middle frequencies.
woofer
Sound Motion™ and a dual-diaphragm woofer with four
Motors enable unique bass in a revolutionary flat, compact
Design.
Microphones
Far-field microphones enable precise
Positioning of audio sources and multichannel echo cancellation for
fast and precise voice control and Trueplay tuning. The
Deactivation is very easy thanks to the microphone switch.
Adjustable equalizer
With the Sonos app you can easily adjust bass, treble and
Volume on.
Trueplay
This software determines the acoustics of the room and adjusts
Then adjust the equalizer perfectly. Compatible with iOS and Android
devices.
Language improvement
Select the clarity of the dialogues in the Sonos app.
Night mode
Activate this setting in the Sonos app to
To reduce the intensity of loud sounds and to increase the intensity of quieter sounds
increase.
Home theater audio formats
Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby Atmos
(Dolby Digital Plus), Dolby Atmos*, Dolby TrueHD*, Dolby Atmos (True HD)*,
Multichannel PCM*, Dolby Multichannel PCM*, DTS Digital Surround**
The Now Playing screen of the Sonos app shows which
audio format is decoded.
*HDMI5 eARC connection required.
**This is not an indication of a licensed decoder.
Dolby Atmos Music
Compatible content required.
TV Audio Swap
Switch TV sound between the soundbar and the Sonos Ace.
Details and dimensions
Dimensions
Height: 75 mm
Width: 1,178 mm
Depth: 110.6 mm
Weight
5.9 kg
surface
Frosted
bracket
M5 x 0.8 mm thread pitch L6.5 mm
Controls
With the capacitive touch control you can control the playback
start, pause, skip and repeat songs, adjust the volume
adjust, mute voice assistants, and group Sonos products and
ungroup.
Bluetooth button
Press this switch to connect to a
Bluetooth device.
Microphone switch
Flip the switch on the back of the product to turn on the
Turn off microphones.
LED
Lights on the device indicate connection, mute,
Microphone activation and errors.
Power supply
Wi-Fi
Compatible with WiFi 6. Connects via WiFi to any
802.11a/b/g/n/ac/ax routers in the 2.4/5 GHz range.
HDMI eARC
Connect to the
HDMI ARC/eARC port on your TV.
Optical cable
The optical audio adapter is sold separately.
Bluetooth
Bluetooth 5.3 supports audio streaming from any
Bluetooth-enabled device.
Tension
100–240 V 50/60 Hz internal power supply
CPU
Quad Core
4xA55 1.9 GHz
memory
2 GB SDRAM
8 GB NV
Voice assistant
Works with Sonos Voice Control and Amazon
Alexa. Service availability depends on country and language.
Apple AirPlay 2
Works with AirPlay 2 on Apple devices running iOS 11.4 or later
via Wi-Fi
Compatible TVs
Not compatible with TVs with
CCFL backlight (manufacturing period 2004–2012).
Scope of delivery
Sonos Arc Ultra
Power cable I
Length: 2 m
HDMI cable
Length: 1.5 m
documentation
Quick start guide, legal information and warranty
